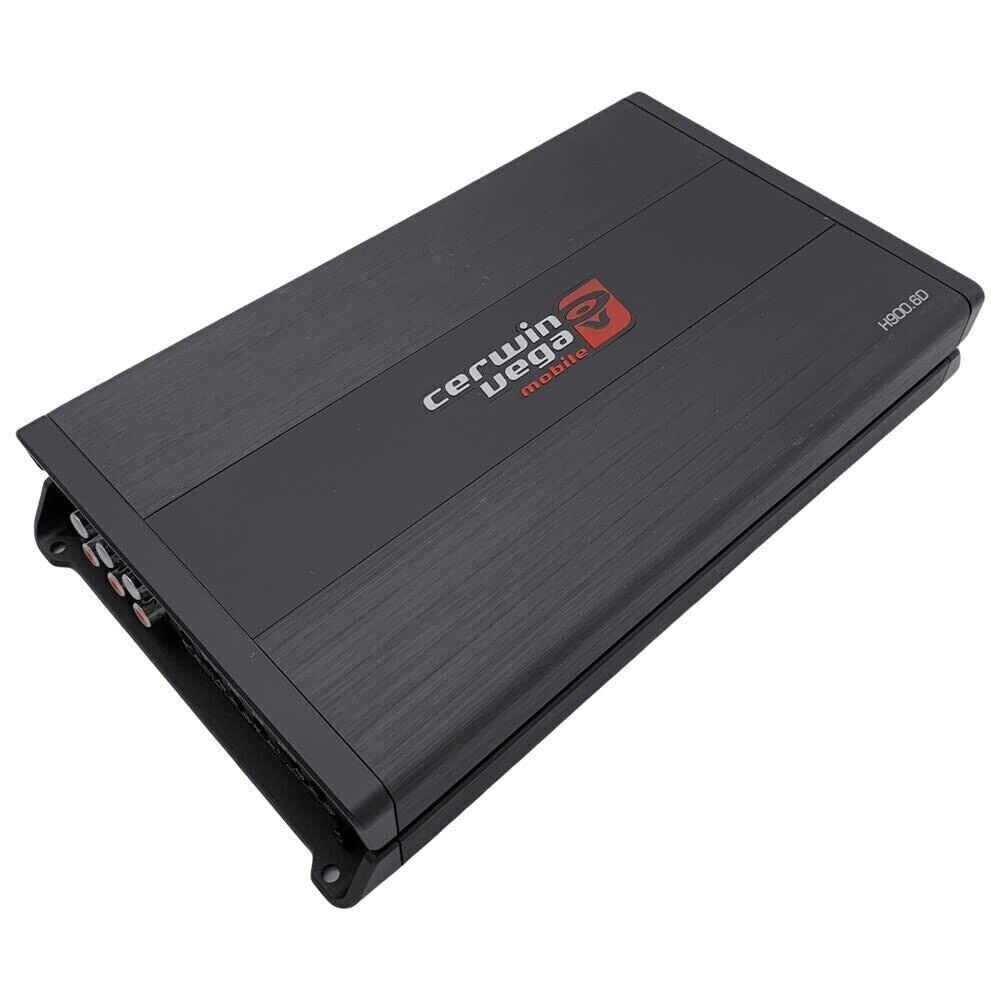

Cerwin Vega H900.6D 1800W Peak (900W RMS) 6-Channel Class D Car Amplifier - High Power Audio System for Cars, Trucks & SUVs | Perfect for Bass Boost & Multi-Speaker Setups

Product Description

Features:

• HED Series Class D 2 ohms Stable 6-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 100 watts x 6 channel +
• 2 ohms: 150 watts x 6 channel +
• Bridged: 300 watts x 3 channel @ 4 ohms + @ 2 ohms
• Total power output: 900 watts
• LED Power/Protect Light
• Wired remote bass level control included
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level: 0.3 - 8.5 volts
• High level: 0.3 - 8.5 volts
(Remove if no)
• Frequency Response: 20 - 30000 Hz
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: 90 dB
• Variable high-pass filter: 50 - 500 Hz, 24 dB/octave
• Variable low-pass filter: 50 - 500 Hz, 24 dB/octave
• Variable Bass Boost: bass boost at 50 Hz
• Fuse Rating: 120
• 4 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 6.3" W x 11" L x 1.9" H

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 100 watts x 6 channel
• RMS Power @ 2 ohms: 150 watts x 6 channel
• Bridged RMS Power: 300 watts x 3 channel

Amplifier Specifications:

• Series: HED Series
• Marine Certified: No
• Amplifier Class: D
• Number of Channels: 6
• Total Peak Power Output: 1800 watts
• Total RMS Power Output: 900 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• Frequency Response: 20 - 30000 Hz
• THD at Rated RMS Power: 0.3%
• Speaker Level Inputs: No
• Preamp Outputs: 3 pairs
• Built-in Crossover: Low-Pass (LP), High-Pass (HP)
• High-Pass Crossover Frequency: 50 - 500 Hz
• Low-Pass Crossover Frequency: 50 - 500 Hz
• Signal-to-Noise Ratio: 90 dB
• Fan Cooled: Yes
• Fuse Rating: 40A x 3
• Total Fuse Rating: 120
• Low-Level Input Sensitivity: 0.3 - 8.5 volts
• High-Level Input Sensitivity: 0.3 - 8.5 volts
