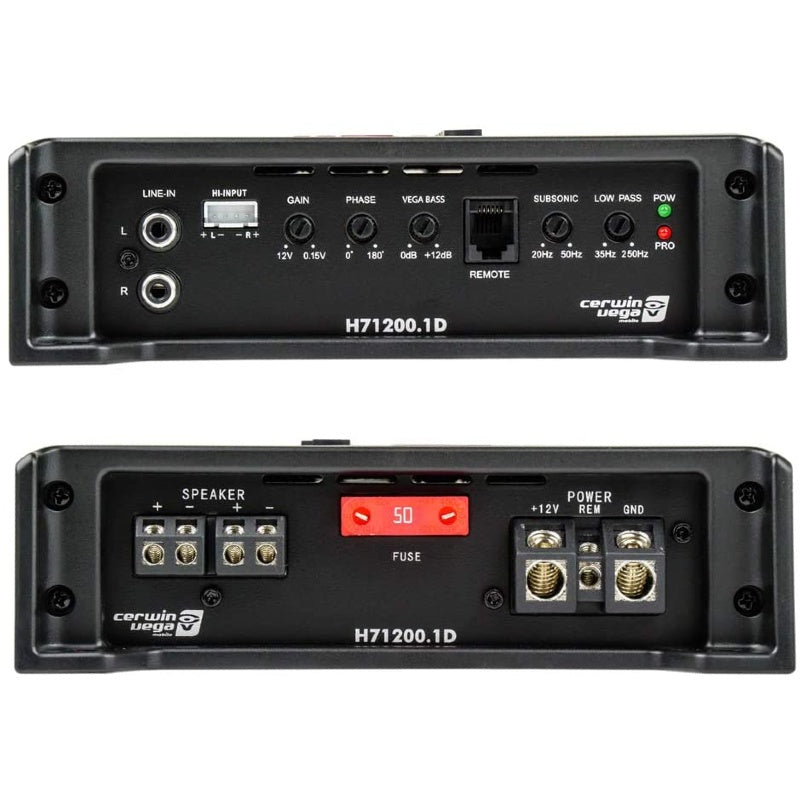

Cerwin Vega H71200 1D 1200W Max (600W RMS) HED Series Class D 1 Ohm Stable Monoblock Car Amplifier - Powerful Bass Boost for Car Audio Systems, Subwoofers, and Truck Stereo Upgrades

Product Description

Features:

• Cerwin Vega HED Series H71200-1D
• Class-D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 200 watts x 1 chan.
• 2 ohms: 350 watts x 1 chan.
• 1 ohm: 600 watts x 1 chan.
• Total power output: 1200 watts
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy-duty aluminum alloy heat-sink
• Input sensitivity: .15V - 12 V
• Frequency Response: 15 - 250 Hz
• Total Harmonic Distortion (THD): .1%
• Signal to Noise Ratio: 90 dB
• Variable low-pass filter: 35 - 250 Hz, 12 dB/octave
• Subsonic filter: 20 - 50 Hz , 12 dB/octave
• Proprietary Vega Boost, 0 - 12 dB
• Fuse Rating: 50A x 1
• Dimensions: 7 Inch W x 11.2 Inch L x 2.1 Inch H

Specifications:

Power Specifications - Subwoofer Channel:

• RMS Power @ 4 ohms: 200 watts x 1 channels
• RMS Power @ 2 ohms: 350 watts x 1 channels
• RMS Power @ 1 ohm: 600 watts x 1 channels

Amplifier Specifications:

• RMS Power @ 1 ohm: 600 watts x 1 channels
• Marine Certified: No
• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total Peak Power Output: 1200 watts
• Total RMS Power Output: 600 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 1 ohms
