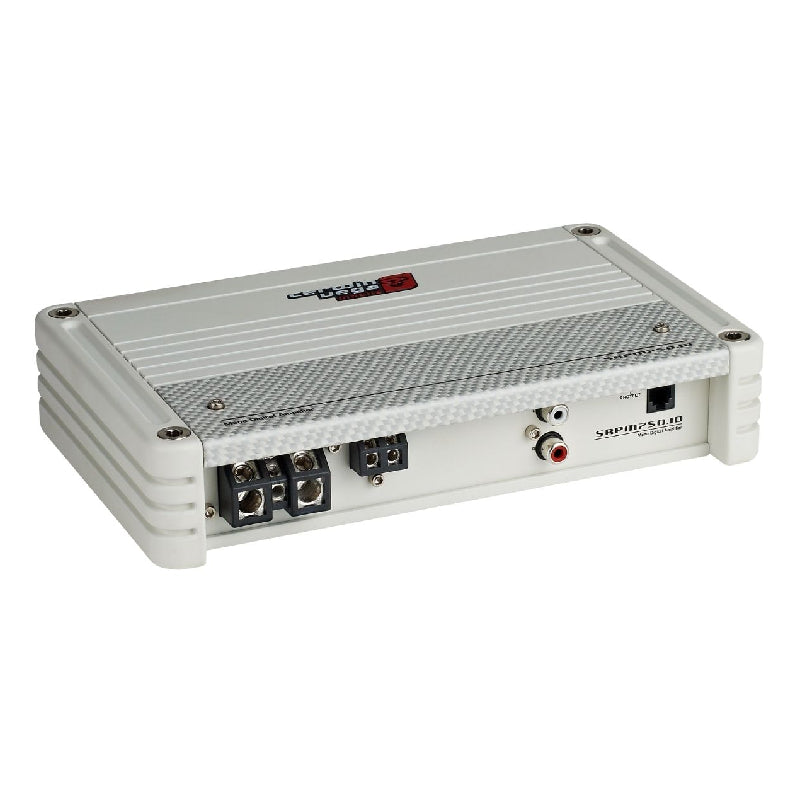

Cerwin Vega SRPM750.1DW RPM Stroker Series 500W RMS @2Ohms, 750W Max Power Class D Mono Block Car Amplifier - Perfect for Car Audio Systems, Bass Boost & Subwoofer Installation

Product Description

Features:

• Class-D Full Range 2-Ohm Stable 1-Channel Amplifier
• RMS Power Rating:
  • 4 ohms: 300 watts x 1 chan.
  • 2 ohms: 500 watts x 1 chan.
  • 1 ohm: 750 watts x 1 chan.
• Total power output: 750 watts
• Conformal coated PCB to protect against dust, vibration and moisture
• Top-mounted controls allow for fast, accurate adjustments
• Bluetooth controller port for the Cerwin Vega CVBTR10 marine Bluetooth controller
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation
• Speaker-level (high-level) inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Input sensitivity:
• Low level: 0.2mV-10V
• High level: Up to 25W RMS
• Frequency Response: 10 - 33,000 Hz
• Total Harmonic Distortion (THD): 0.05%
• Variable low-pass filter: 30 - 300 Hz, 24 dB/octave
• Subsonic filter: 10 - 55 Hz , 24 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Color: White
• Dimensions: 5.27"W x 8.66"L x 1.75"H

Specifications:

• RMS Power @ 4 ohms: 300 watts x 1 channel
• RMS Power @ 2 ohms: 500 watts x 1 channel
• RMS Power @ 1 ohm: 750 watts x 1 channel
• Series: Stroker RPM Series
• Marine Certified: Yes
• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total RMS Power Output: 750 watts
• Maximum Input Gauge Size: 8 AWG
• Minimum Impedance Unbridged: 1 ohms
• Minimum Impedance Bridged: Not Bridgeable
• THD at Rated RMS Power: 0.05%
• Speaker Level Inputs: Yes
• Preamp Outputs: 1 pair
• Built-in Crossover: Low-Pass (LP), Subsonic
• Low-Pass Crossover Frequency: 30 - 300 Hz
• Subsonic Filter: 10 - 55 Hz
• Bass Boost: 0 - 12 dB
• Remote bass/level controller: Yes
• Fan Cooled: No
• Strappable: No
• CEA-2031 Compliant: No
• Amp Bluetooth Connectivity: Yes
• Hi-Res Certified: No
