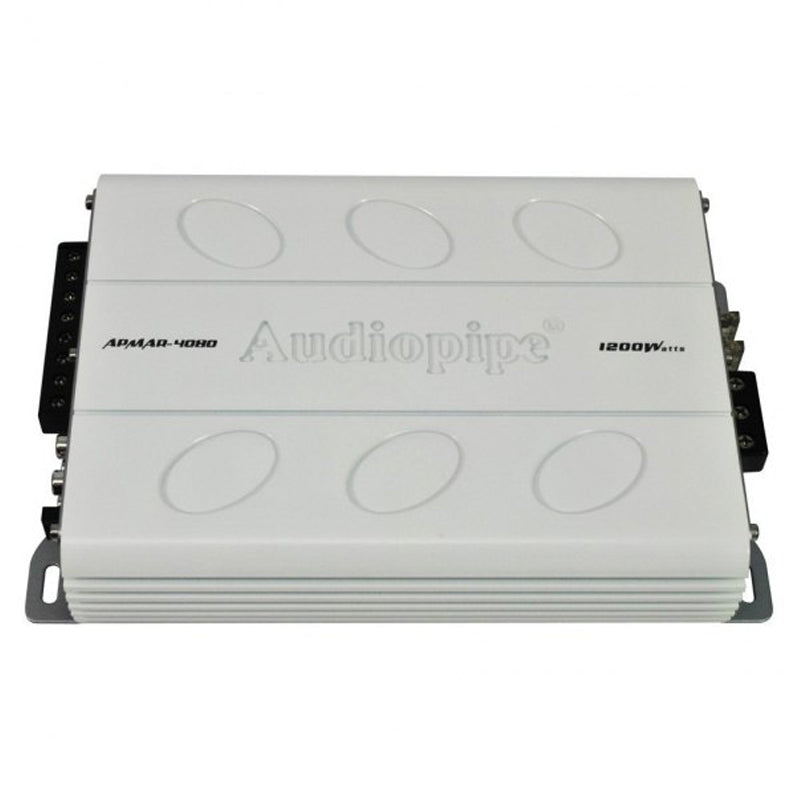

Audiopipe APMAR 4080 Marine Grade 4-Channel Amplifier - High Power Car Audio Amp for Boats, Cars & Trucks | Perfect for Marine & Automotive Sound Systems

Product Description

Features:

• APMR Series 4-Channel Mini Marine Amplifier
• RMS Power Rating:
  • 4 ohms: 80 watts x 4 chan.
  • 2 ohms: 115 watts x 4 chan.
  • Bridged, 4 ohms: 230 watts x 2 chan.
• Max power output: 1200 watts
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Wired remote level control included
• Soft start turn-on
• 4, 3 or 2 channel operation
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity: 200mV - 6V
• Frequency Response: 10 - 20,000 Hz
• Signal to Noise Ration: >80dB
• Selectable crossover modes: FLAT / HPF / LPF
• Variable high-pass filter: 50 - 1,200 Hz
• Variable low-pass filter: 50 - 500 Hz
• Selectable Bass Boost: 0dB / 6dB / 12dB
• Current draw: 60A
• Fuse Rating: 25A x 2

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 80 watts x 4 channels
• RMS Power @ 2 ohms: 115 watts x 4 channels
• Bridged RMS Power: 230 watts x 2 channels

Amplifier Specifications:

• Marine Certified: Yes
• Number of Channels: 4
• Total Peak Power Output: 1200 watts
• Total RMS Power Output: 460 watts
• Maximum Input Gauge Size: 8 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• THD at Rated RMS Power: .05%
• Speaker Level Inputs: No
• Preamp Outputs: No
• Built-in Crossover: Low-Pass (LP), High-Pass (HP), Full (AP)
• High-Pass Crossover Frequency: 50 - 1,200 Hz
• Low-Pass Crossover Frequency: 50 - 500 Hz
• Signal-to-Noise Ratio: >80 dB
• Bass Boost: Selectable: 0dB / 6dB / 12dB
• Bass/Gain Remote: Yes
• Fuse Rating: 25A x 2
