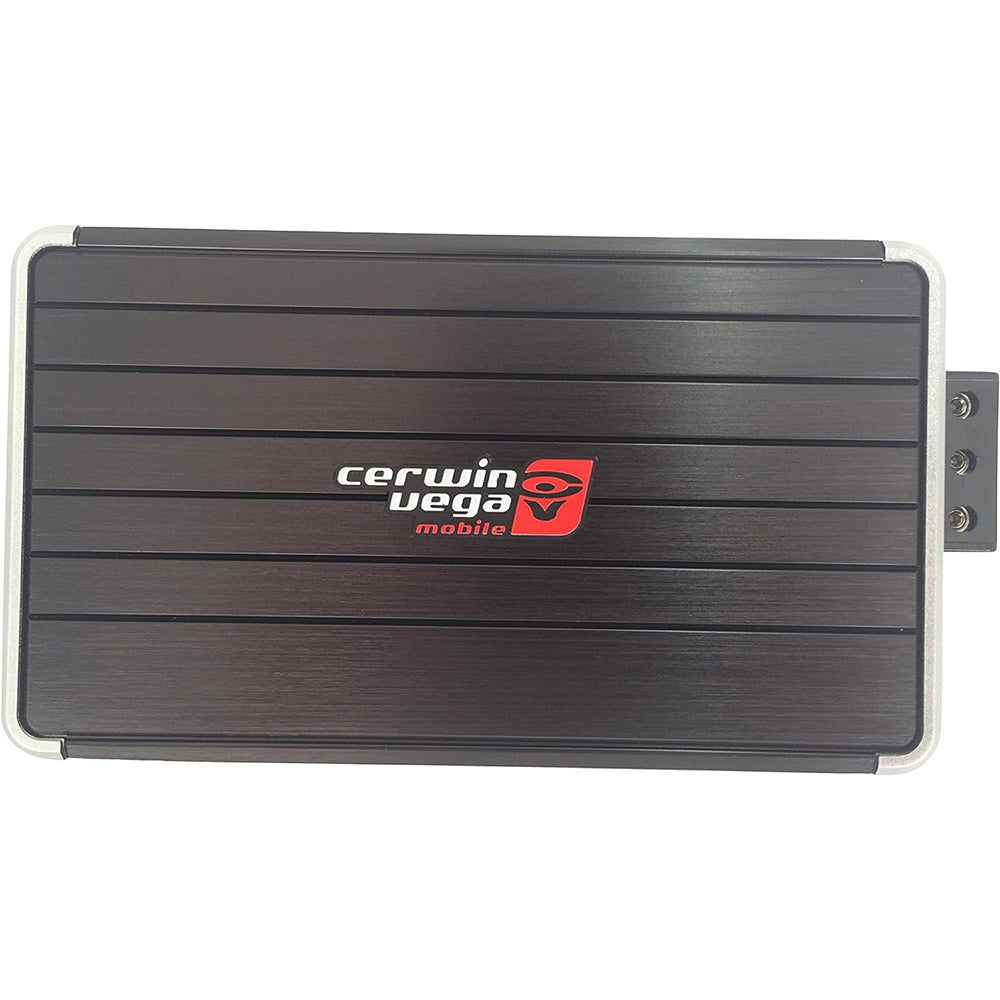

Cerwin Vega B51 Stealth Bomber Series Monoblock Class D Car Amplifier - 2000W High Power Bass Boost for Car Audio System | Perfect for Truck, SUV & Custom Car Stereo Upgrades

Product Description

Features:

• Ultra Compact High Density Aluminum Alloy Chassis
• Advanced Rollback Power/Thermal Protection
• Class D IR Chipset with DirectFET Power MOSFET Output
• 500W X 1 @ 2Ω, 300 X 1 @ 4Ω RMS Power
• Crossover: 40Hz-400Hz (LP/HP)
• Frequency Response: 10Hz-500Hz

Specifications:

• Max Power: 1000 Watt
• RMS Power (2 Ω): 300 Watt
• RMS Power (4 Ω): 175 Watt
• Bridged (Mono 1 Ω): 500 Watt
• Bridged (Mono 2 Ω): 300 Watt
• Bridged (Mono 4 Ω): 175 Watt
• Topology: Full Range Class D
• Power Supply: Full PWM
• Power Supply Threshold: 10.0 VDC - 17.0 VDC
• Idle Current: 0.7A
• THD 4 (1 KHz @4Ω): 0.5%
• S/N Ratio (A weighted @1W): -85 dBA
• S/N Ratio (A weighted @FP): -101.1 dBA
• Low Input Level: 200 mV - 10.0 V
• High Input Level: N/A
• Low Input Level: 20 KΩ
• AUX Input Level: 20 KΩ
• Output Impedance: 0.011 Ω
• Damping Factor (50Hz @ 4Ω): >250
• Bandwidth (-3dB): 10Hz - 350Hz
• Variable High-Pass: N/A
• Variable Low-Pass: 40Hz - 400Hz
• Variable Sub-Sonic: 10Hz - 55Hz
• ATC: 25A
• Length x Width x Height (inches): 7.7 x 4.02 x 1.4
• Length x Width x Height (mm): 195.6 x 102.1 x 35.5
